Clean Partition

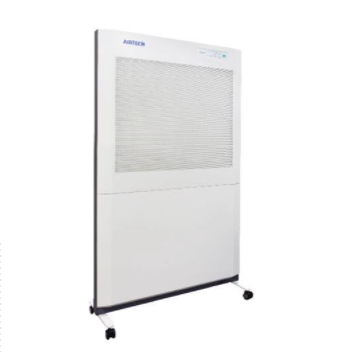

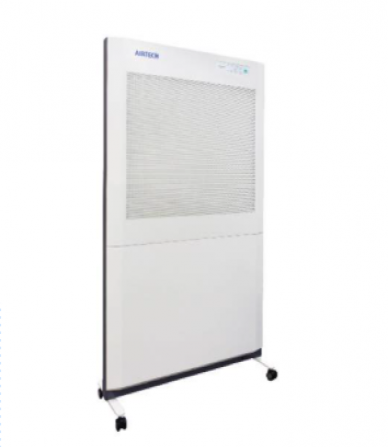

An ultra-thin partition type air purifier. Depending on the air flow, there are clean specifications and decontamination specifications. It can be used for various purposes such as improving indoor cleanliness, installing it on a workbench as a clean bench, as an exhaust bench, or mounting it on the ceiling as an FFU. BSL4.
UTOPIA cleanroom partition wall systems are an innovative and easy for installation wall system. The system is specially designed for pharmaceutical, hospital & Biotech industrial cleanroom environment.
Characteristics:
- It is possible to Select out of clean TYPE (A-B TYPE) and removing contamination type (C-D TYPE)
- It is possible to install CLEAN PARTITION with independence, or on wall and ceiling.
- It is easy to make up clean room, germ-free room and infection preventive room with CLEAN PARTITION.
- It is possible to substitute CLEAN PARTITION for CLEAN BENCH. (Table and hood are options).
- Thin and Space-saving (The depth of main body is about 60mm)
- Noise-less (37 phone at low speed).
- It is possible to remove a stench with active carbon filter
- CLEAN PARTITION is useful for a waiting room, office and so on. (Useful for a ward and consulting room). BSL4.
Specification
About standards and specifications
| Model |

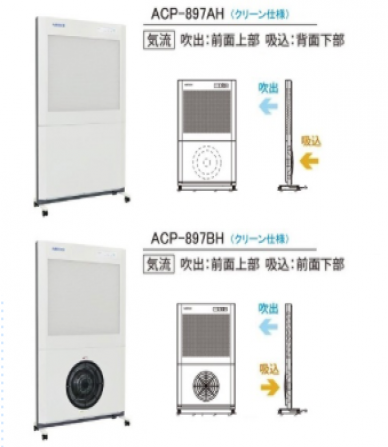

ACP-897AH / ACP-897BH (clean specification) |
|---|---|
| Dust collection efficiency |
99.99% or more with 0.3 μm particles |
| Dust collecting element |
Main filter: HEPA filter |
| Power supply |
AC100V 1φ 50 / 60Hz |
| weight |
About 40 kg |
| Construction |
Steel plate baking finish |
| Air volume setting mode |
Large air volume / strong / · / weak / quiet |
| Processing air volume (m³ / min) |
About 12.5 / about 6.5 / about 5.0 / about 4.0 / about 3.0 |
| Wind speed (m / sec) |
About 0.50 / about 0.26 / about 0.20 / about 0.16 / about 0.12 |
| Noise (dBA) |
About 58 / about 45 / about 43 / about 40 / about 36 |
| Power consumption (W) |
About 90 / about 25 / about 17 / about 11 / about 7 |
| Installed power |
About 145VA |
| Model |

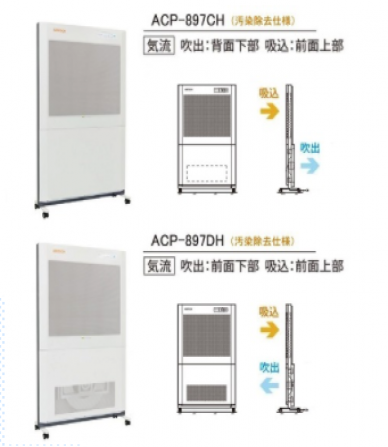

ACP-897CH / ACP-897DH (decontamination specifications) |
|---|---|
| Dust collection efficiency |
99.99% or more with 0.3 μm particles |
| Dust collecting element |
Main filter: HEPA filter |
| Power supply |
AC100V 1φ 50 / 60Hz |
| weight |
About 43 kg |
| Construction |
Steel plate baking finish |
| Air volume setting mode |
Large air volume / strong / · / weak / quiet |
| Processing air volume (m³ / min) |
About 11.5 / about 6.5 / about 5.0 / about 4.0 / about 3.0 |
| Blow-out wind speed (m / sec) |
About 0.46 / about 0.26 / about 0.20 / about 0.16 / about 0.12 |
| Noise (dBA) |
About 58 / about 45 / about 43 / about 40 / about 36 |
| Power consumption (W) |
About 90 / about 25 / about 17 / about 11 / about 7 |
| Installed power |
About 145VA |
