Clean Room Equipment

Cleanroom Clean Bench

AIRTECH clean benches are economical, lightweight, and come in a variety of standard sizes. They are available in Table Top, Console, SS-MAC, and custom models. All models use either extruded anodized aluminium or cold rolled steel main body construction. Clean bench is the most effective method of ensuring a clean zone around a critical work or inspection process. The work area can be kept at class 100, 10, or 1 utilizing horizontal or vertical laminar air flow. Clean benches are perfect for a full range of manufacturing and inspection processes in the semiconductor, microelectronic, pharmaceutical, or biomedical industries. #SGVS-840K #SGVS-1300L

AIRTECH clean benches are economical, lightweight, and come in a variety of standard sizes. They are available in Table Top, Console, SS-MAC, and custom models. All models use either extruded anodized aluminium or cold rolled steel main body construction. Clean bench is the most effective method of ensuring a clean zone around a critical work or inspection process. The work area can be kept at class 100, 10, or 1 utilizing horizontal or vertical laminar air flow. Clean benches are perfect for a full range of manufacturing and inspection processes in the semiconductor, microelectronic, pharmaceutical, or biomedical industries. #SGVS-840K #SGVS-1300L

Specification

  SGVS-840K SGVS-1300L
Cleanliness ISO CLASS 5 ISO CLASS 5
Air Velocity ≥0.3 m/s ≥0.3 m/s
Noise ≤62 dBA ≤62 dBA
Illumination ≥300 Lx ≥300 Lx
Power AC220V, 1φ, 50Hz AC220V, 1φ, 50Hz
Materials Working table: All-in-one Stainless Steel, Outside cabinet: high grade steel and lacquered in ivory.
Work Dimension (W1XD1XH1) 680 x 650 x 570 mm 1140 x 650 x 720 mm
Overall Dimension (WXDXH) 840 x 825 x 1625 mm 1300 x 825 x 1775 mm



Optional Accessories: UV Lamp

#SGVS-840K

#SGVS-1300L

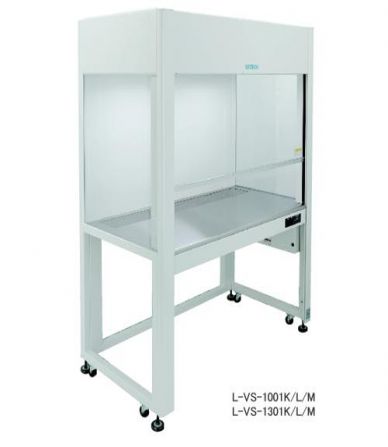

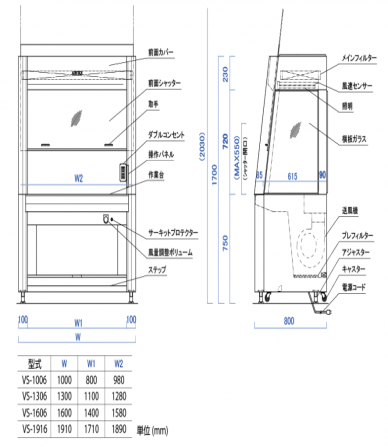

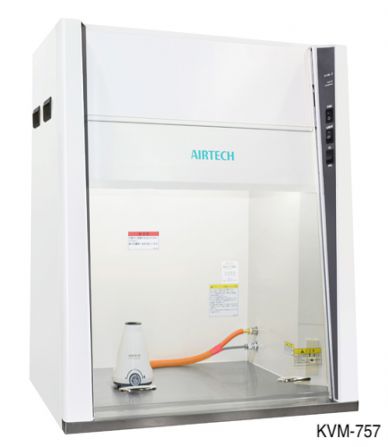

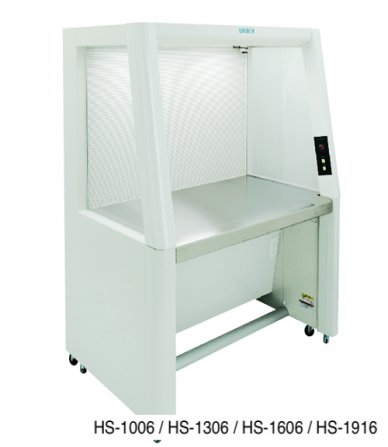

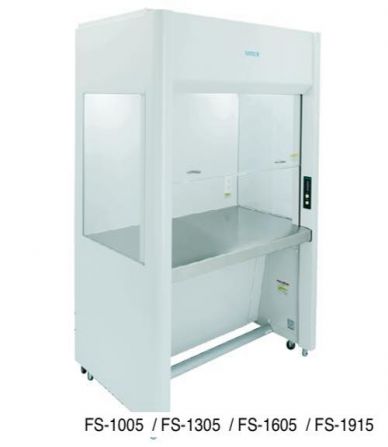

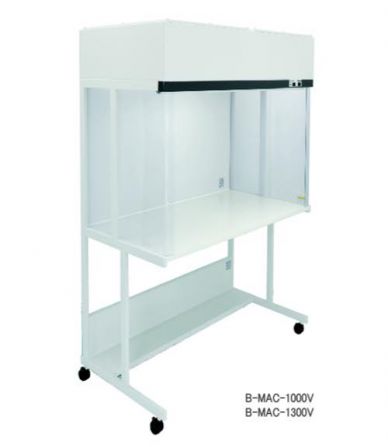

VS-1006 / VS-1306 / VS-1606 / VS-1916, FS-1005  / FS-1305  / FS-1605  / FS-1915, L-VS-1001, L-VS-1301, B-MAC-1000V, B-MAC-1300V, HS-1006, HS-1306, HS-1606, HS1916, KVM-757
